★ 可以直接複製貼上到 C 語言開發環境中,此程式碼可以直接編譯執行(只要你配置好開發環境與硬體)。

說明:保證編譯可以通過,實際運行後可以正確輸出,祝大家成功

原理:STM32F4 使用 I2C 讀取 TC74 A0 然後再經由 UART 傳送至電腦中查看。

腳位:
        I2C 腳位:PB6 = SCL,PB7 = SDA
        UART 腳位:PC10 = TX,PC11 = RX,(包率 = 9600)

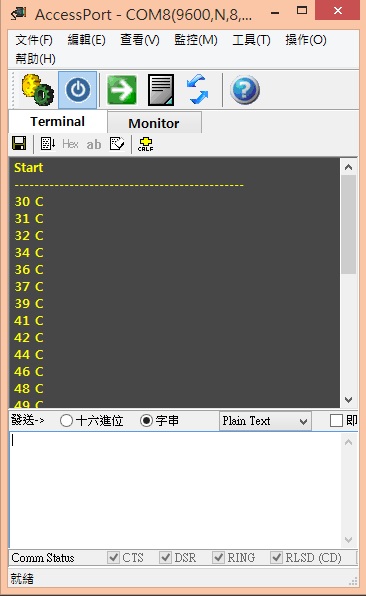

輸出結果:

A11111

程式碼:

#include "stm32f10x.h"
#include "stdio.h"

#define SLAVE_ADDRESS 72 << 1 // TC74 A0 的 I2C 地址



void Init_I2C() {
    I2C_InitTypeDef I2C_InitStructure;
    GPIO_InitTypeDef GPIO_InitStructure;

    /* 啟用 I2C */
    I2C_Cmd(I2C1,ENABLE);
    /* 啟用 I2C1 RCC 時鐘 */
    RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);

    /* 設定 I2C1 的 SDA 與 SCL 腳位 */
    /* PB6 = SCL ,PB7 = SDA */
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6 | GPIO_Pin_7;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_OD;
    GPIO_Init(GPIOB, &GPIO_InitStructure);

    /* 設定 I2C1 */
    I2C_InitStructure.I2C_Mode = I2C_Mode_SMBusHost;
    I2C_InitStructure.I2C_DutyCycle = I2C_DutyCycle_2;
    I2C_InitStructure.I2C_OwnAddress1 = 0x00; // STM32 自己的 I2C 地址
    I2C_InitStructure.I2C_Ack = I2C_Ack_Enable;
    I2C_InitStructure.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;
    I2C_InitStructure.I2C_ClockSpeed = 100000 ; // 設定 I2C 時鐘速度為 100K
    I2C_Init(I2C1, &I2C_InitStructure);
}

/* 發送開始信號
 * 發送到 "從設備 (Slave Device)" 地址 + R/W bit
 *
 * 參數:
 * I2Cx --> I2C 外設,例如:I2C1
 * address --> 7 bit 的 "從設備 (Slave Device)" 地址
 * direction --> 設定方向,例如:
 * I2C_Direction_Tranmitter 為 主發送模式
 * I2C_Direction_Receiver 為 主接收模式
 */
void I2C_start(I2C_TypeDef* I2Cx, uint8_t address, uint8_t direction){
    // 等待 I2C1 不忙的時候...
    while(I2C_GetFlagStatus(I2Cx, I2C_FLAG_BUSY));

    // 對 I2C1 發送啟動信號
    I2C_GenerateSTART(I2Cx, ENABLE);

    // 等待 I2C1 EV5 --> 從 從設備 (Slave Device) 確認啟動信號
    while(!I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_MODE_SELECT));

    // Send slave Address for write
    I2C_Send7bitAddress(I2Cx, address, direction);

    /* 等待 I2C1 EV6, 並判斷 I2C 方向:
    * 如果是 I2C_Direction_Tranmitter 則設定為 主發送模式
    * 如果是 I2C_Direction_Receiver 則設定為 主接收模式
    */
    if(direction == I2C_Direction_Transmitter){
        while(!I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED));
    } else if(direction == I2C_Direction_Receiver){
        while(!I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_RECEIVER_MODE_SELECTED));
    }
}

/* 發送一個 byte 到 "從設備 (Slave Device)"
 *
 * 參數:
 *I2Cx --> I2C 的外設,例如:I2C1
 *data --> 要發送的 byte 資料
 */
void I2C_write(I2C_TypeDef* I2Cx, uint8_t data)
{
    I2C_SendData(I2Cx, data);
    // 等待 I2C1 EV8_2 --> 已發送一個 byte
    while(!I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_BYTE_TRANSMITTED));
}

/* 從 "從設備 (Slave Device)" 讀取一個 byte
 * 並請求後面一個 byte
 */
uint8_t I2C_read_ack(I2C_TypeDef* I2Cx){
    uint8_t data;
    // 啟用 確認設定接收資料
    I2C_AcknowledgeConfig(I2Cx, ENABLE);
    // 等待接收到一個 byte
    while( !I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_BYTE_RECEIVED) );
    // 從 I2C 佔存器讀取一個 byte 並回傳
    data = I2C_ReceiveData(I2Cx);
    return data;
}

/* 從 "從設備 (Slave Device)" 讀取一個 byte
 * 且之後就不再接收資料
 */
uint8_t I2C_read_nack(I2C_TypeDef* I2Cx){
    uint8_t data;
    // disabe acknowledge of received data
    // nack also generates stop condition after last byte received
    // see reference manual for more info
    I2C_AcknowledgeConfig(I2Cx, DISABLE);
    I2C_GenerateSTOP(I2Cx, ENABLE);
    // 等待收到一個 byte
    while( !I2C_CheckEvent(I2Cx, I2C_EVENT_MASTER_BYTE_RECEIVED) );
    // 從 I2C 佔存器讀取一個 byte 並回傳
    data = I2C_ReceiveData(I2Cx);
    return data;
}

/* 發送停止信號
 * 釋放 I2C 匯流排
 */
void I2C_stop(I2C_TypeDef* I2Cx){
    // 停止 I2C1
    I2C_GenerateSTOP(I2Cx, ENABLE);
}

void My_Usart1_Send(char *string){
    while(*string){
        /* 傳送訊息至 USART1 */
        USART_SendData(USART1, (unsigned short int) *string++);

        /* 等待訊息傳送完畢 */
        while (USART_GetFlagStatus(USART1, USART_FLAG_TC) == RESET);
    }
}

void Init_UART(){
    /******** 宣告 USART、GPIO 結構體 ********/
    GPIO_InitTypeDef GPIO_InitStructure;
    USART_InitTypeDef USART_InitStructure;

    /******** 啟用 GPIOA、USART1 的 RCC 時鐘 ********/
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA|RCC_APB2Periph_USART1, ENABLE);

    /******** 設定 PA9 為 Tx 覆用 ********/
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_9;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;

    GPIO_Init(GPIOA, &GPIO_InitStructure); // 初始化 PA9

    /******** 設定 PA10 為 Rx 覆用 ********/
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_10;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;

    GPIO_Init(GPIOA, &GPIO_InitStructure); // 初始化 PA10


    /******** USART 基本參數設定 ********/

    USART_InitStructure.USART_BaudRate = 9600;
    USART_InitStructure.USART_WordLength = USART_WordLength_8b;
    USART_InitStructure.USART_StopBits = USART_StopBits_1;
    USART_InitStructure.USART_Parity = USART_Parity_No;
    USART_InitStructure.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
    USART_InitStructure.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;

    USART_Init(USART1, &USART_InitStructure); // 初始化 UART1

    USART_Cmd(USART1, ENABLE); // 啟用 USART1
}

int main(){
    int i;
    char buff [] = "";
    uint8_t received_data[2];

    Init_I2C(); // 初始化 I2C
    Init_UART(); // 初始化 UART

    My_Usart1_Send(" Start \n");
    My_Usart1_Send("---------------------------------------------- \n");

    while(1){
        I2C_start(I2C1, SLAVE_ADDRESS, I2C_Direction_Transmitter); // 在 主發送 模式中 準備開始 發送
        I2C_write(I2C1, 0x00); //  寫入一個 byte 到 TC74 感測器
        I2C_stop(I2C1); // 停止發送

        I2C_start(I2C1, SLAVE_ADDRESS, I2C_Direction_Receiver); // 在 主發送 模式中 準備開始 發送
        received_data[0] = I2C_read_ack(I2C1); // 從 TC74 讀取一個 byte 並請求後面一個 byte
        received_data[1] = I2C_read_nack(I2C1); // 讀取一個 byet 後,就不再讀取後面一個 byte (停止傳輸)


        sprintf (buff, "%d", received_data[0]); // 將數字轉成字串 (String)

        My_Usart1_Send(buff); // 輸出溫度值到電腦
        My_Usart1_Send(" C \n");

        for(i=0; i<1000000; i++); // 延遲
    }
}
